- H Transparent Connector for COB and High Density Strip
- Solderless
- Seamless connection, continuous light
- 100% transparent, no shade, keeping original color temperature
| Item No. |
Application |
Description |
| H-B4P-10 |
Strip-To-Strip |
Transparent PC connector for RGB COB strip
4 Pin, 10mm, IP20
Strip to strip without soldering
0-36V, 5.5A |
| H-A4P-10 |
Strip-To-Controller |
Transparent PC connector for RGB COB strip
4 Pin, 10mm, IP20, 1 head
Strip to wire without soldering, 15CM naked 20AWG UL wire
0-36V, 5.5A |

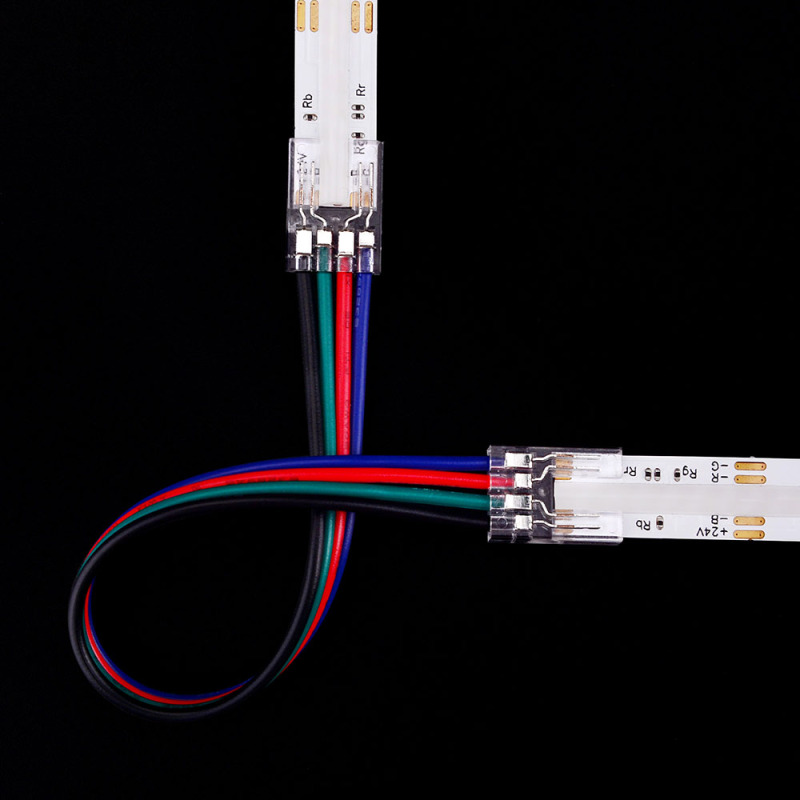

| H-A2T-4P-10 |
Strip-To-Strip |
Transparent PC connector for RGB COB strip
4 Pin, 10mm, IP20, 2 heads
Strip to wire without soldering, 15CM naked 20AWG UL wire
0-36V, 5.5A |
|
Solder Free COB Strip Connectors -- Invisible
|
Not need soldering, press directly, transparent, no dark area.
Slim size, put into the aluminum channels.
Zero shadow, light as invisible.
- Tin-plated copper
- Contact points
- Groove for LED strip
- Lock
|
How to connect strip to controller
|
|
1.Insert strip into each gap.
|
2.Clamp both conductors for piercing PCB one by one.
|
|
|
4.Connect wire to controller.
|
|
1. The high temperature and humidity environment will cause the product to change color. It is recommended to be stored in environment with temperature and humidity management.
2. Please use the product within 6 months after leaving factory, the warranty period is 1 year.
3. The raw materials of the connector will absorb moisture. If the temperature changes sharply in the hygroscopic state, the color of the shell may shift. It is recommended to store in ventilated and dry environment and avoid sunlight.
|
